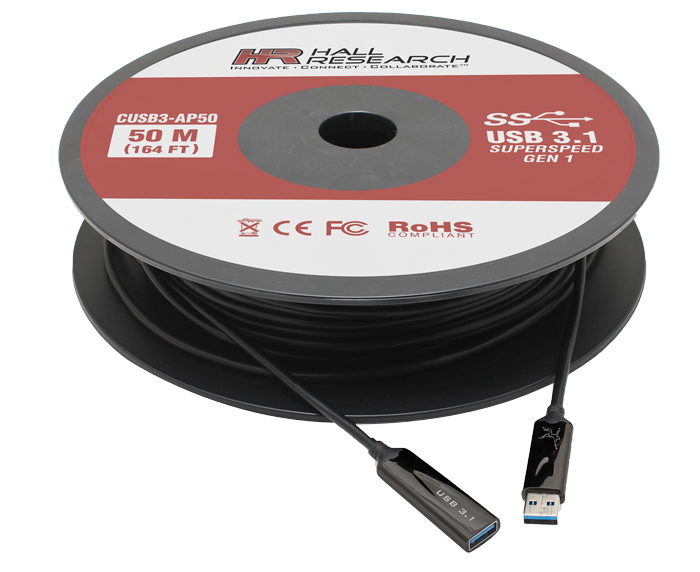

USB 3.0/3.1 Gen 1 Javelin™ Active Optical Plenum Cable

Hall Research has a new addition to its Javelin™ series of active optical cables the CUSB3-AP USB 3.0 Extender cable.  Available in lengths of 15, 30, and 50 meters, these cables support transparent extension of USB 3.1 Gen1 Super-Speed at data rates of up to 5 Gbps. More…

CUSB-AP cables are compatible with virtually all USB 3.0 and 3.1 Gen1 devices, and are a perfect solution for extending 4K USB 3.0 videoconferencing cameras, video capture, docking stations, and other high-speed data communication.

The cable is a light-weight hybrid of fiber and copper, and is plenum rated to ensure compliance with modern building codes. Fiber optics offer high immunity to EMI and RFI noise for trouble free operation. The cable uses minimal power and does not require any additional power supply. The USB host connection provides 5v power for operation and the cable sends 5v via its copper wires to the remote (device) end. The cables are constructed using Plenum (CMP) Rated jacket material to ensure compliance with modern building codes. The small cable ends can be easily pulled through most conduits (a pulling sock is recommended) making the CUSB-AP* a true plug-and-play solution.
