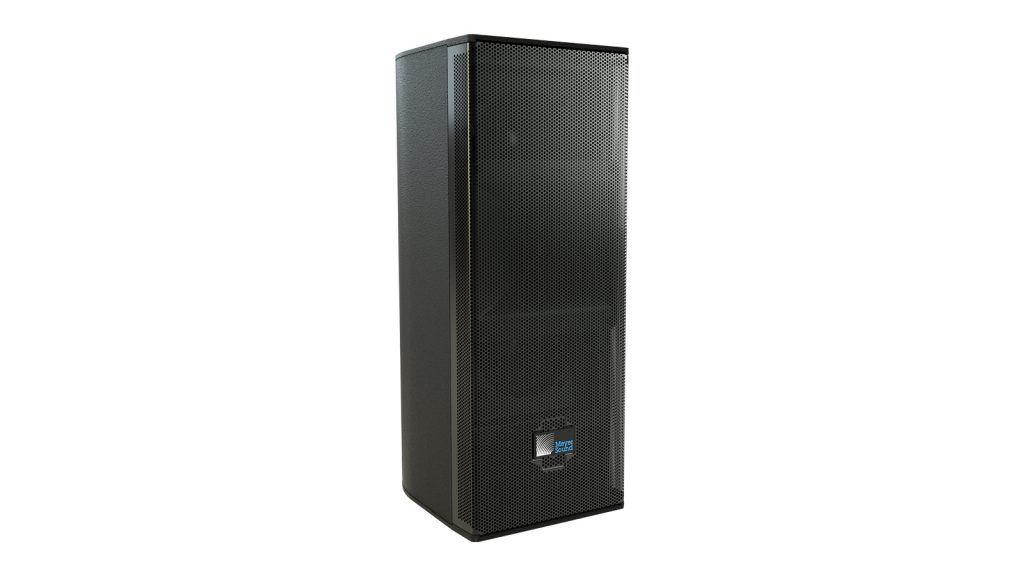

Meyer Sound’s ULTRA-X20 compact point source loudspeaker is a junior-sized version of the ULTRA-X40 loudspeaker. It offers the same design principles and advanced technologies but employs smaller drivers in a lighter and more compact package. The ULTRA-X20 incorporates 2 5” cone drivers, 1 2” diaphragm compression driver and a rotatable 110°x 50° horn in a coaxial configuration. Power comes from a 3-channel Class D amplifier with sophisticated DSP, with everything fitted inside a compact cabinet that measures a mere 7.5” wide by 19.04” high by 8.6” deep and weighs only 26 pounds. Preliminary performance specifications give an operating frequency range of 60Hz to 18kHz, phase response of ±45° (100Hz to 16kHz) and linear peak SPL of 123.5dB measured with M-Noise.
This post is part of our ISE 2020 New Product Spotlight.
