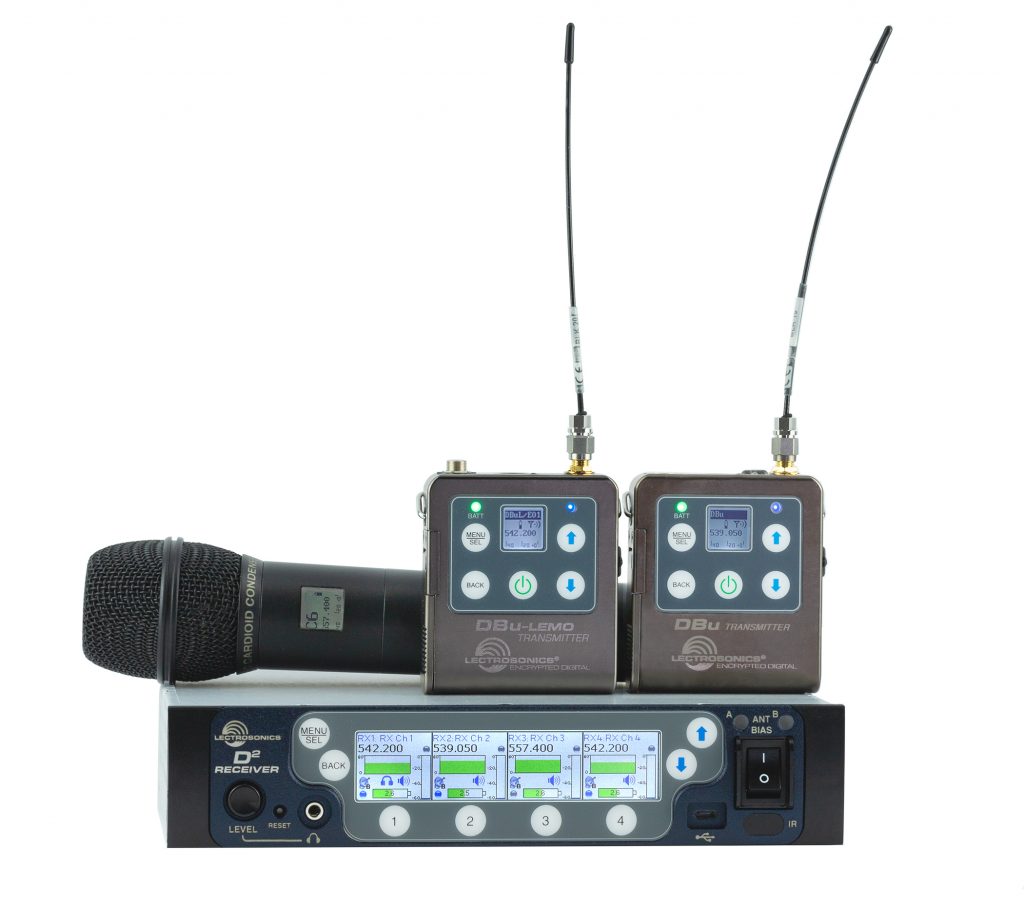

Lectrosonics’ DBu-LEMO digital bodypack transmitter is fully compatible with Lectrosonics DSQD digital receiver and features a tuning range of 470-608MHz (614MHz for export version). The transmitter includes specially developed circuitry for extended operating time on two AA batteries, and RF power selections at 10, 25 and 50mW (roughly equivalent in operating range to 25, 60 and 120mW in an FM transmitter). The DbU-LEMO has an audio frequency response of 20Hz to 2 kHz +0.0, – 3dB, a dynamic range of 110dB before limiting and a flat in-band phase response. The 00 Lemo 3-pin connector and input wiring is the same as the SSM micro transmitter, allowing the use of existing accessories. The DBu-LEMO’s audio transmission is encrypted in a 256-bit AES, CTR mode format for robust security.
This post is part of our ISE 2020 New Product Spotlight.
