InfoComm 2020 Connected Spotlight

Comprehensive’s CHE-HDBTWP120K

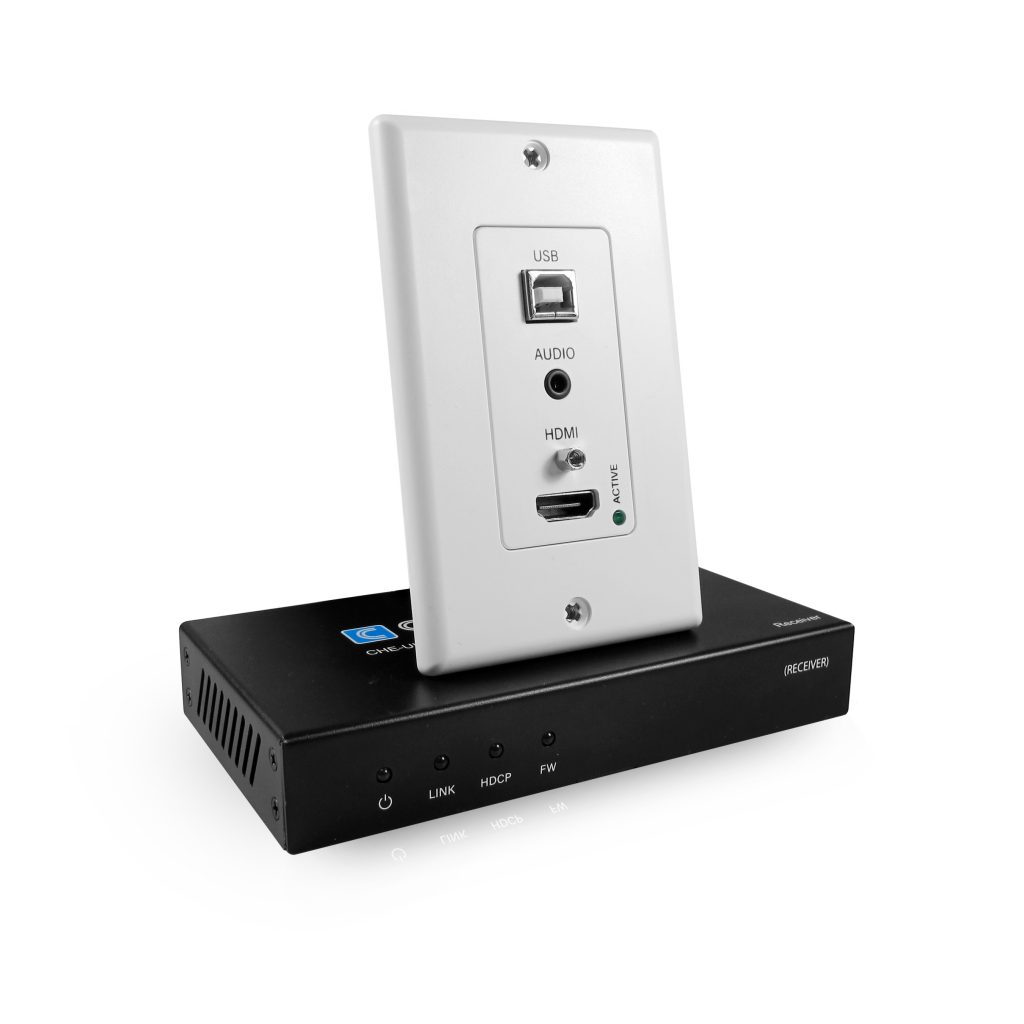

Comprehensive’s CHE-HDBTWP120K Wall Plate Extender kit is designed to extend HDMI, analog audio and high-speed USB 2.0 signals up to 230′ over Cat5e or Cat6 cables. It supports HDMI and USB 2.0 with audio inputs. This USB/HDMI extender can transmit 4K resolutions up to 4K@60Hz, 4:2:0 up to 131′ and 1080P@60Hz up to 230′, making it ideal for classrooms, meeting rooms, huddle spaces and other AV installations. The CHE-HDBTWP120K includes 24V POC function support. Either the TX or RX can be powered by the included 24V/1A power adapter or Phoenix jack. The two high speed USB 2.0 ports allow you to connect two USB devices and use them simultaneously. The 3.5mm analog audio jack delivers audio independent from the HDMI signal for additional audio routing. All components are backed by Comprehensive’s three-year warranty.


This post is part of Sound & Communications’ InfoComm 2020 Connected New Product Spotlight.
