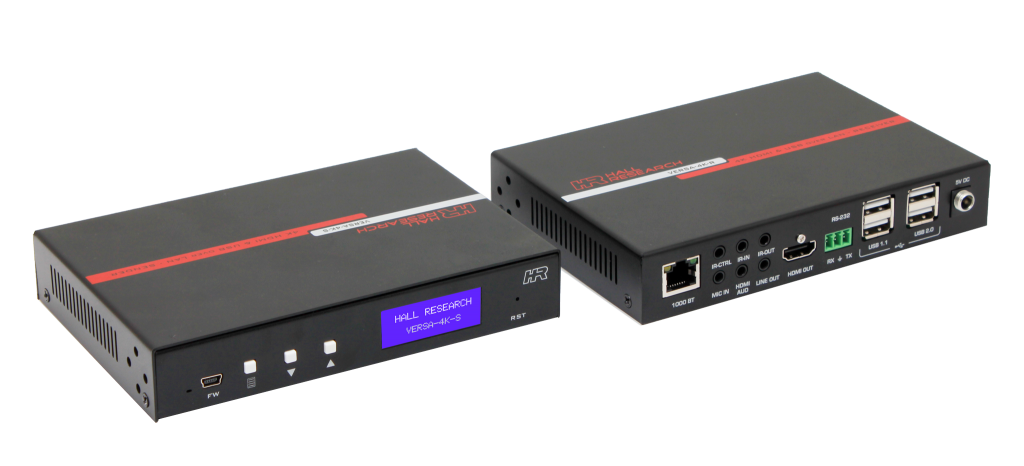

VERSA-4K The Versatile AV-over-IP Solution For Tomorrow

The VERSA-4K can extend and switch multiple HDMI video and USB data to virtually an unlimited number of receivers on a simple Gigabit network. Bidirectional IR, RS-232, and auxiliary stereo audio can also be extended. Advanced features for video include, low latency video and audio, CEC and Serial over IP for control, video wall processor to expand and split 4K video on to multiple screens, video rotation and flipping (horizontal and vertical). In addition, it has USB Device class filtering for excluding specific USB device types such as USB flash drives, automatic KVM switching, Telnet and WebGUI control, Dynamic Virtual Matrix™ (DVM) operation and PoE (power over Ethernet) support. There are 4 USB ports available on the Receiver.

In a 1-to-1 setup (one Sender to one Receiver) no external network equipment is needed, just connect a Cat6 cable up to 120 meters (400 ft) between the two ends. In a many-to-many setup, a dedicated gigabit network switch (with IGMP and Jumbo-frame support) is required. Each VERSA-4K includes a power supply adapter, however, if the network switch provides PoE, connection of the power adapter is not required. Users can route the video from up to 64 senders to virtually unlimited receivers.
