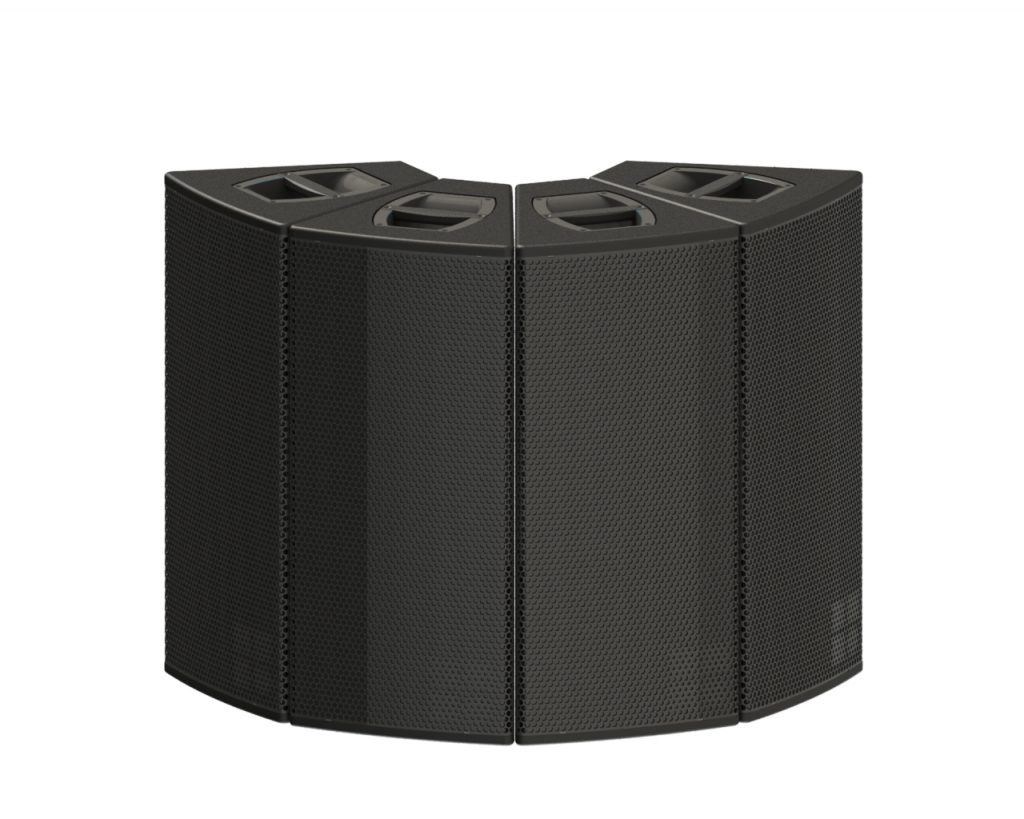

d&b audiotechnik’s A-Series introduces a unique speaker concept that sees advanced waveguide design combined with d&b enabling technologies. With flexible splay angles, this system addresses a wide range of medium size applications where the highest level of coverage flexibility is paramount. Realizing all the adaptability of a point-source cluster with the extensive control options of a d&b line array, the system comprises the AL60 and AL90 speakers, with ALi60 and ALi90 offering cabinets designed specifically for permanent installation. Both speakers share a passive 2-way design featuring 1 1.4″ exit HF compression driver with a 3″ diaphragm mounted to a wave-shaping device, plus 2 10″ neodymium LF drivers. The combination of sophisticated waveguide design and the symmetrical dipolar arrangement of the LF drivers allows a smooth overlap of the adjacent frequency bands in the crossover design. The wave segments of each cabinet couple without gaps and sum up coherently.
Demo Room #W232AB
This post is part of Sound & Communications’ InfoComm 2019 New Product Spotlight.
