CenterStage

Sound Masking and Music/Paging Speakers in One Easy-Install Package

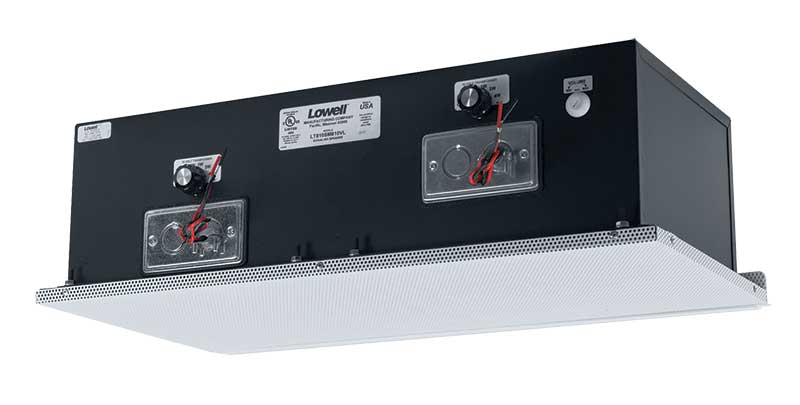

Sound Masking and Music/Paging Speakers in One Easy-Install PackageLowell’s LT/SM Series, for suspended tile ceilings, simplifies installs with a two-in-one design that handles both music/paging and sound masking. The ready-to-install speaker features two 8 in. 15W dual-cone drivers—one fires down for music/paging and one fires up for sound masking. The assembly includes two 70V factory-wired transformers, a partitioned backbox providing 700 cu.in. volume for each driver, and 1×2 or 2×2 fine perforation grille. The 1×2 models feature Lowell’s patented* T-bar to hold adjacent (cut) non-tegular tile, eliminating the need for a separate bar. The speaker includes tie off points/restraint tabs for code compliance, externally accessible tap selector knobs, and removable plates for easy wiring. An optional 50ohm potentiometer is available for applications requiring fine volume adjustment of the masking driver. LT speakers are also available in configurations without the sound masking option. *U.S. Patents: 7120269; D467579; 7643647

www. sndcom.us/lowell-ltsm-series-speakers
