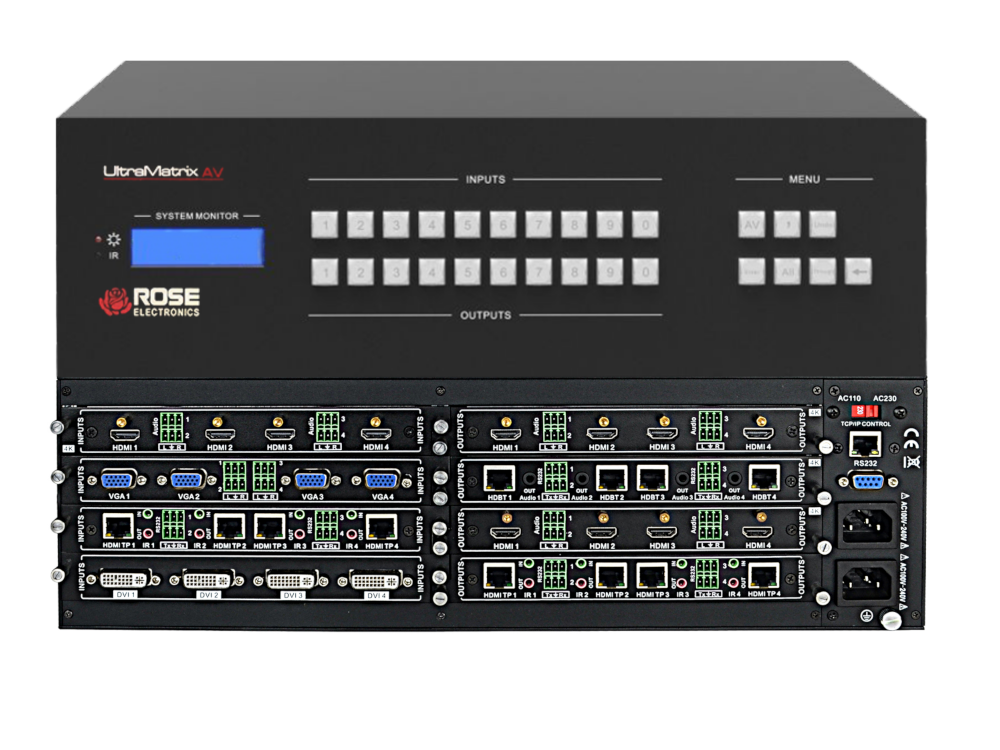

Rose Electronics’ UltraMatrix AV Pro Matrix Switch

Rose Electronics’ UltraMatrix AV Pro is a 4K UHD modular matrix switch available in 8×8, 16×16, 32×32, 64×64 and 144×144 models. Features include seamless switching, video conversion and scaling, separate or combined audio switching, HDCP compliance, 4K60 resolution, flexible EDID control, and extension over fiber or Cat6. The chassis accepts various 4-port input and output cards including HDMI, HDBaseT, 3G-SDI, DVI and VGA/audio. With HDBaseT, video can reach up to 233′ (70m) from the switch over a Cat6 cable. Multi-mode fiber can reach up to 1,000′ (300m). Single-mode fiber can reach up to 1.2mi (2km). Configuration and control of the switch can be managed by front panel, infrared remote control, RS-232 or Ethernet. This product is suited for applications such as post-production, control centers, presentation venues, medical, government, retail and residential environments.

Rose Electronics
www.rose.com

This post is part of Sound & Communications’ InfoComm 2019 New Product Wrap-Up.
